Speedrite 1J, 2J & 3J, 12v Solar Packages(frame & battery not included)


*This is a free ship item and will ship by UPS Ground only.

Solar package will include based on your selection:

  • Speedrite Unigizer Dual-Powered AC & DC (Select between Speedrite 1000, 2000 or 3000 models)
  • Solar Panel (10 watt w/ Speedrite 1000, 20 watt w/ Speedrite 2000, 30 watt w/ Speedrite 3000)
  • 10 Amp Charge Controller
  • 24" Battery Cable

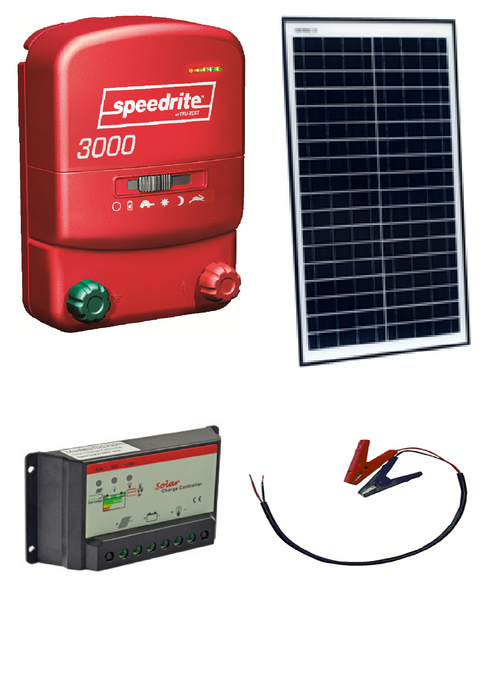

IMPORTANT NOTE: Picture shows the Speedrite 3000 model and 30 watt panel. Select between the 1, 2, or 3 joule models.

Instructions included for Unigizer, Solar Panel & Charge Controller

You will need to purchase a deep-cycle marine battery with around a 50 amp hour storage. If reserve capacity is all that is given on the battery, multiply the RC by .4167 to determine amp hour storage.

Tip: If you can buy a true deep-cycle battery rather than the marine/rv hybrid battery then do that.

We recommend 9' of galvanized ground rod (1/2"-5/8" diameter) to properly ground this system for maximum shock.

This system can efficiently energize(6-10kv) up to 3 miles of 9-strand mixed-metals Polybraid, single strand and ~ 6 miles of 12.5 ga hi-tensile. Results do vary depending on the quality of grounding system, soil conductivity, soil type, moisture content, etc,..

Feel free to contact us if you need any help!
