Gates

Electrified gates are a low-cost and effective gate option in any Management-intensive Grazing operation. We have options for gates installed between wood posts, t-posts, drill stem.

Our preferred way of installing an electric gate is to first trench between end posts where the gate will be installed.

Cut a piece of conduit to fit the length of the gate and run an insulated wire through to the other side. Give yourself plenty of extra length on the insulated wire since it will need to be connected to your highest electrified wire. You do not want to connect the underground wire to a lower wire because "weed load" is greater and you will consequently lose voltage.

Seal the ends of the conduit with either silicon or expandable foam. Fill in your trench.

Secure the insulated wire to the end posts using either staples or zip ties.

Using either a open-tap sleeve or split-tap bolt connect your insulated wire to your fence wire on either side.

Now that you have created a continuous electrical path, it is time to install your gate.

We usually use either Bungee or Polybraid Gate Rope (this is not your 9-strand polybraid. It is ~1/4" diameter and has 22 metal conductors)

You can either use a gate plate and insulator as a hookup or you can create your own gate loop by leaving an extra length of hi-tensile wire when constructing your fence. Here's how you do it..

When tying your wire off at the end post give yourself enough of a lead to make a gate loop and fasten to the end post. See picture below for reference

The other side of the gate rope is tied off to an insulator. This way when the gate is opened, it is no longer hot. This prevents arcing when the gate rope is touching the ground and spooking your animals.

Batt-Latch Gate Kit - Free Shipping
$395.00

Batt-Latch Gate Kit - Free Shipping

The Batt-latch is the world’s only portable solar powered automatic gate release timer. Pre-programmed by the farmer, it can be used on any gate sy...

View full details
$395.00

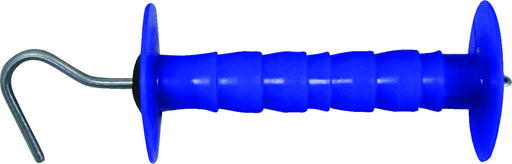

Stafix Gate Handle, Blue
$4.75

Stafix Gate Handle, Blue

Stafix Compression Gate Handle, blue Spring compresses, no more floppy springs

$4.75

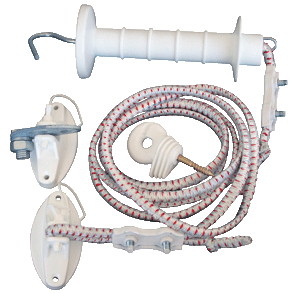

20' Bungee Gate Kit
$14.95

20' Bungee Gate Kit

20' Bungee Gate Kit  For gates 15-20' wide

$14.95
3-Hole Gate Hookup Set
$2.75

3-Hole Gate Hookup Set

3-Hole Gate Hookup Set Includes: Wood Post Pinlock insulator 3-Hole Gate Plate Split-tap Bolt

$2.75
Gate Hookup w/ 2-Pin T-Post Pinlock Insulator
$2.75

Gate Hookup w/ 2-Pin T-Post Pinlock Insulator

Gate 3-Hole Hookup w/ 2-Pin T-Post Pinlock Insulator

$2.75
PolyBraid Rope per ft
$0.21

PolyBraid Rope per ft

PBRG (Gold) is a premium, pure polyester 1/4" rope product that is of the highest quality. Pure polyester has a high natural resistance to UV and w...

View full details
$0.21
Bungee Gate Rope per ft
$0.39

Bungee Gate Rope per ft

Electric Bungee Gate Cord Is a useful product for variable sized gates as long as the inside rubber remains intact. 6 stainless steel conductors ~...

View full details
$0.39
Zammr Handle-White
from $2.75

Zammr Handle-White

Discount on case qty 30 handles per case Use as a live hook OR an insulated hook in temporary electric fencing OR as a gate break Strong stainl...

View full details
from $2.75
Economy Gate Handle
$1.99

Economy Gate Handle

Durable black gate handle recommended for portable fencing. The dramatic curve of the hook of this handle provides polybraid, a secure and reliable...

View full details
$1.99
Underground  Leadout Wire - 50 ft-Coil
$10.50

Underground Leadout Wire - 50 ft-Coil

Burying insulated wire at gates is often better than running wire overhead or using removable electric gate wire. The use of household electrical w...

View full details
$10.50
Underground Leadout Wire - 100 ft-Coil
$21.00

Underground Leadout Wire - 100 ft-Coil

Burying insulated wire at gates is often better than running wire overhead or using removable electric gate wire. The use of household electrical w...

View full details
$21.00
Underground  Leadout Wire - 250 ft-Coil
$52.50

Underground Leadout Wire - 250 ft-Coil

Burying insulated wire at gates is often better than running wire overhead or using removable electric gate wire. The use of household electrical w...

View full details
$52.50
Underground  Leadout Wire - 500 ft-Coil
$99.00

Underground Leadout Wire - 500 ft-Coil

Burying insulated wire at gates is often better than running wire overhead or using removable electric gate wire. The use of household electrical w...

View full details
$99.00
Underground Leadout Wire - 1000 ft-Coil
$210.00

Underground Leadout Wire - 1000 ft-Coil

Burying insulated wire at gates is often better than running wire overhead or using removable electric gate wire. The use of household electrical w...

View full details
$210.00
1320' Polybraid Gate Rope (22 Conductors)
$215.00

1320' Polybraid Gate Rope (22 Conductors)

Powerflex PolyBraid Rope is what we prefer to use for gateways. It is a premium, pure polyester, 1/4" braided rope product that is of the highest q...

View full details
$215.00
