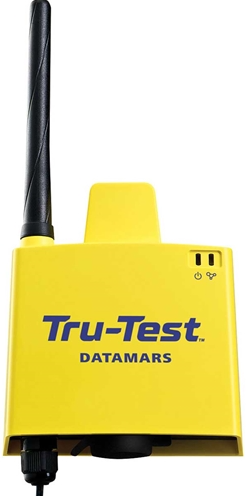

Tru-Test Fence Monitoring Gateway

Smart Fencing System Overview

Each system includes a Farm Gateway and at least one Fence Node (sold separately, Part #880 0004-540). Solar-powered Nodes are installed at intervals of up to 1,640 feet along the fence line, either from the Gateway or another Node. These Nodes continuously monitor fence voltage and transmit data back to the Gateway.

The Farm Gateway mounts easily to a barn or shed wall and connects via WiFi or Ethernet to the Datamars Livestock: Farm Management App. Once installed, producers can set voltage thresholds and receive alerts when levels drop. The system pinpoints the general location of faults, saving time and labor in fence inspections.

Expand coverage by adding more Nodes—up to 50 per Gateway—to monitor large or remote areas.

Key Features

• Instant voltage readings via smartphone

• Compatible with any brand of energizer

• Nodes measure up to 12,000V

• 1,640 ft radio frequency range per Node (line of sight)

• Cloud-based data storage with 24/7 access

• Rugged, weatherproof hardware with UV stabilization

• Easy installation with LED indicators and in-app guidance

• Firmware is programmable and easily updated

• Designed for large, remote properties

• No subscription required; operates via radio frequency (no cell signal needed)

• Brand-independent—only system of its kind

Farm Gateway Specifications

• Collects data from up to 50 Nodes

• WiFi/Ethernet connectivity

• Bluetooth® Low Energy setup

• 12-hour internal battery backup

• LED status indicators

• Easy wall mount (barn or house)

• Weatherproof enclosure

• 100–240V power adapter for continuous operation

Warranty: 3 years
